Validation of the disparity map

Theoretical basics

Validation methods provide a confidence index on the calculated disparity, those available in pandora are

The cross checking ( cross checking [Fua1993] ), which allows to invalidate disparities. It consists in reversing the role of the images (the left image becomes the right image, and vice versa) and to compare the disparity $disp_{L}$ (corresponding to the left image $I_{L}$ ) with $disp_{R}$ (corresponding to the right image $I_{R}$ ) :
- If $| disp_{L}(p) + disp_{R}(p + disp_{L}(p)) | \leq threshold$ , then point p is valid
- If $| disp_{L}(p) + disp_{R}(p + disp_{L}(p)) | \geq threshold$ , then point p is invalid
The threshold is 1 by default, but it can be changed with the cross_checking_threshold parameter. Pandora will then distinguish between occlusion and mismatch by following the methodology outlined in [Hirschmuller2007]. For each pixel p of the left image invalidated by the cross-checking :
- If there is a disparity d such as $disp_{R}(p+d)=-d$ , it is a mismatch.
- Otherwise, it’s an occlusion.

Note

Cross checking does not modify the disparity map, it only informs bits 8 and 9 in the validity mask.

It is possible to fill in occlusions and mismatches detected during cross-validation:

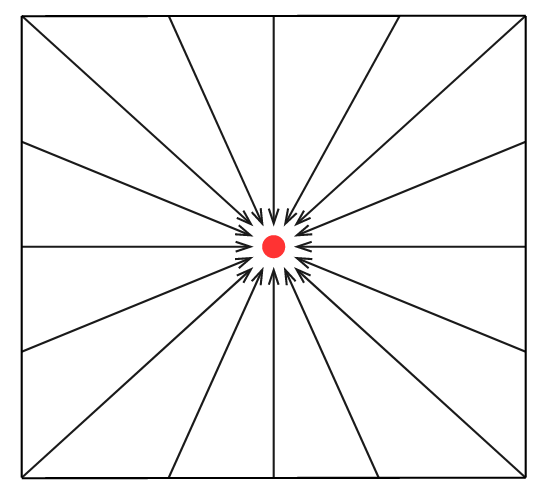

using the method proposed in [Zbontar2016] : the disparity of an occluded pixel is modified using the first valid disparity from the left. The disparity of a pixel considered as a mismatch becomes the median of the first 16 valid pixels in the directions shown below (note: these directions are not related to the libSGM ):
using the method proposed in [Hirschmuller2007] : the disparity of an occluded pixel is modified using the smallest disparity (the disparity closest to 0) in 8 directions. The disparity of a pixel considered to be a mismatch becomes the median of the first 8 valid pixels in the directions shown below. Mismatches that are direct neighbours of occluded pixel are treated as occlusions.

Note

The parameter interpolated_disparity is used to select the method to correct occlusions and mismatches.

[Fua1993]

Fua, P. (1993). A parallel stereo algorithm that produces dense depth maps and preserves image features. Machine vision and applications, 6(1), 35-49.

Configuration and parameters

Table 3 Available parameters
Name	Description	Type	Default value	Available value	Required
validation_method	Validation method	str		“cross_checking_accurate”	Yes
cross_checking_threshold	Threshold for cross-checking method	int, float	1.0		No
interpolated_disparity	Interpolation method for filling occlusion and mismatches	str		“mc_cnn”, “sgm”	No

Example

{
    "input" :
    {
        // ...
    },
    "pipeline" :
    {
        // ...
        "validation":
        {
           "validation_method": "cross_checking_accurate"
        }
        // ...
    }
}
