Validity criteria

Pandora uses 12 criteria to invalidate pixels that cannot be computed or to identify particular pixels. There are two types of criteria :

  • Invalidity criteria : the pixel is invalid and cannot be computed.

  • Information criteria : the pixel is valid, the criteria gives informations on the reliability of the match.

These criteria are 16-bit encoded. Each bit represents a certain criteria and is equal to 1 if the criteria is raised and 0 otherwise.

Table 1 Criteria values

Criteria

Value in validity mask

Invalidity or information

Name in Pandora

0

2⁰ = 1

Invalidity

left no data or border

1

2¹ = 2

Invalidity

right no data or disparity range missing

2

2² = 4

Information

right incomplete disparity range

3

2³ = 8

Information

stopped interpolation

4

2⁴ = 16

Information

filled occlusion

5

2⁵ = 32

Information

filled mismatch

6

2⁶ = 64

Invalidity

invalid in left mask

7

2⁷ = 128

Invalidity

invalid in right mask

8

2⁸ = 256

Invalidity

pixel occlusion

9

2⁹ = 512

Invalidity

pixel mismatch

10

2¹⁰ = 1024

Information

filled no data

11

2¹¹ = 2048

Information

pixel interval regularized

12

2¹² = 4096

Information

pixel’s disparity range is partially incomplete

These criteria are stored in a Xarray.DataArray validity_mask in cost volume and disparity map Xarray.Datasets. The validity_mask is the same size as the left image.

Criteria can be linked to user configuration, disparity range, or mismatch and occlusion for instance.

Criteria are computed in different steps of the Pandora machine :

  • Matching cost

  • Refinement

  • Filter

  • Validation

  • Multiscale process

Note

The criteria are cumulative, i.e. several bits can be set for each pixel, except on the edges of the image.

Criteria raised in matching cost step

Criteria 0, 1, 2, 6, and 7 are computed during the matching cost step because the cost volume cannot be computed for some points. In this step, criteria are raised according to left and right masks and disparity range given by the user configuration.

Most of criteria are raised before the computation of the cost_volume. However, criteria 1 is also updated after this computation because we need to know which cost volume points are equal to nan to raise criteria 1 on certain points.

At the end of the matching cost step, the validity_mask is filled with integers indicating which bits, and therefore which criteria, have been set.

Criteria linked to left mask

Criteria 0: left no data or border

Criteria 0 is raised when a point is on the border of left image or is a no data value in left image mask.

For no data points in left mask, we raise criteria 0 in validity mask around points with the same coordinates as the no data in the left mask, to which a binary dilation of size of the matching cost window has been applied.

For points on the edges, we invalidate a certain number of rows and columns according to the value of the offset which is calculated from the window_size such as:

offset = \lfloor (window\_ size - 1) / 2 \rfloor

Where window_size is an input parameter of matching cost (see Matching cost computation).

For example if offset=2 we raise the criteria 0 for 2 rows on at the top, 2 rows at the botttom, 2 columns on the left and 2 columns on the right in the validity mask.

Warning

On the edges, criteria are not cumulative, which means that only bit 0 is set.

Criteria 6: invalid in left mask

Criteria 6 is raised when a point is marked as invalid in left mask in user configuration.

We raise criteria 6 in validity mask on points with the same coordinates as the invalid points in the left mask.

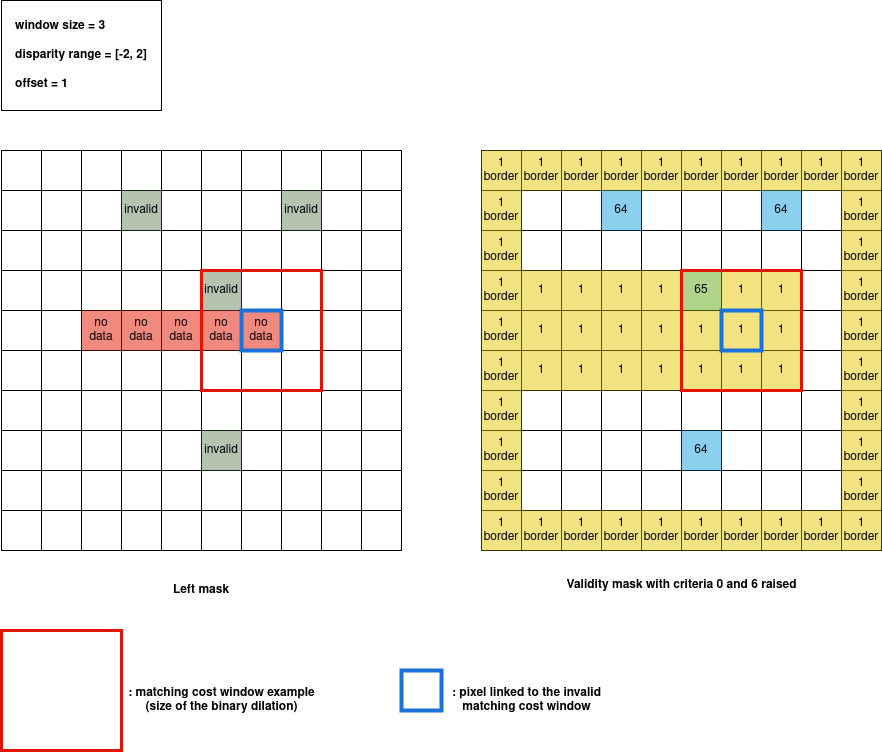

Example of validity mask with criteria 0 and 6 raised

../_images/left_criteria.drawio.png

On this example the matching cost window size is equal to 3, the disparity range is [-2, 2] and the offset is 1.

Criteria 0 is raised around each no data pixel of the left mask with a binary dilation of the size of the matching cost window, as shown by the red square of size 3x3. Criteria 0 is also set on each pixel of the border, which are marked “1 border”.

Criteria 6 is raised on each invalid pixel of the left mask.

Criteria linked to right mask and missing or incomplete disparity range

Criteria 1: right no data or disparity range missing

Criteria 1 is raised when a point in right image has no valid exploration window in its disparity range. An exploration window is invalid when it contains no data points or when it is outside the image.

Criteria 1 is also set after the cost volume computation for points that meet two conditions:

  • their cost volume are NaN for all disparities in the disparity range.

  • they are not on the edge of the image.

Criteria 2: right incomplete disparity range

Note

Criteria 2 is an information and does not invalidate a point.

Criteria 2 is raised when a point in right image has part of its disparity range outside the image.

Criteria 7: invalid in right mask

Criteria 7 is raised for a pixel when all the points in its disparity range are invalid, either because they are invalid in the right mask or because they have an exploration window out of the image.

Criteria 12: partially incomplete disparity range

Criteria 12 is raised for a pixel when at least one of the points in its disparity range is either outside of the right image, or marked as NaN in its validity mask. This criteria works with variable disparity ranges.

Note

Criteria 12 is an information and does not invalidate a point.

Example of validity mask with criteria 1, 2 and 7 raised

On this example the matching cost window size is equal to 3, the disparity range is [-2, 2] and the offset is 1.

../_images/criteria_1_point_5_3.gif

Criteria 1 is raised for each point that has no valid exploration window. Which means that if you test all exploration windows in the disparity range, you either have no data points in the right mask or you are out of the image. This is shown by the red square of size 3x3 which represents the exploration window of point (5,3) which is invalid for each disparity in [-2, 2]:

  • For disparity = -2 : we are out the image

  • For disparity = -1 : we have no data in right mask

  • For disparity = 0 : we have no data in right mask

  • For disparity = 1 : we have no data in right mask

  • For disparity = 2 : we have no data in right mask

We raise criteria 1 for the point (5,3). The same applies to other points with no valid exploration window.

../_images/criteria_1_point_5_7.gif

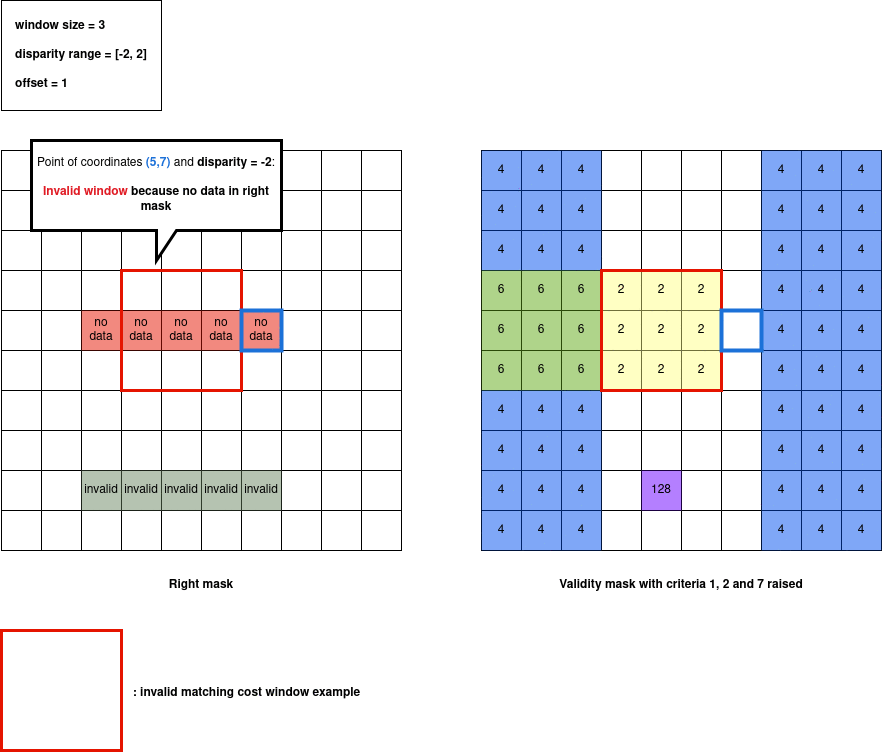

On the other hand, for point (5,7), all the exploration windows are invalid except the one corresponding to disparity=2. As we have at least one valid window, criteria 1 is not set around point (5,7).

../_images/criteria_2_point_9_2.gif

Criteria 2 is raised when a point has some of its exploration windows outside the image, but not all of them. This is shown by the orange square of size 3x3 which represents the exploration window of point (9,2) for disparity = -1. This point has invalid exploration window out of the image for disparity = -1 and disparity = -2 but has valid exploration window for other disparities.

We raise criteria 2 for point (9,2) and for all points having some of their exploration window out of the image.

../_images/criteria_7.drawio.png

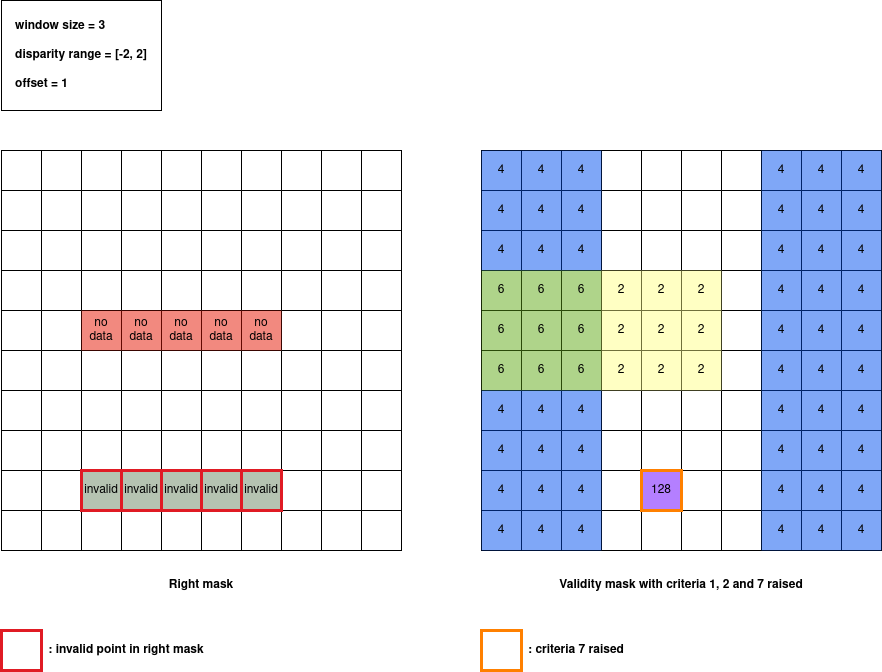

Criteria 7 is only raised for the point (9, 5) because it is the only point which has its entire disparity range invalidated in the right mask. In fact, in the mask on the right, the point with coordinates (9, 5), the two points to its left and the two points to its right are invalid.

Example of validity mask with criteria 12 raised

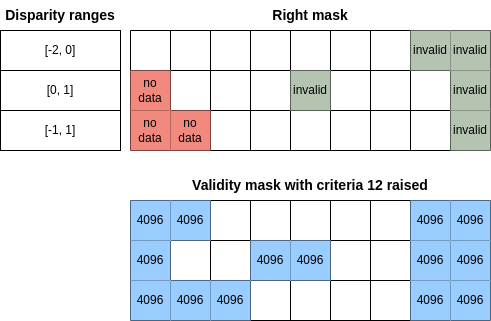

In this example, the matching cost window is equal to 1, meaning the offset is 0. The disparity range varies along the rows : [-2, 0] for the first row, [0, 1] for the second, and [-1, 1] for the last. The left image’s mask is entirely valid.

../_images/criteria_12_example.png

This criteria flags all the pixels whose match in the right image may not actually be present in said image, either because it could be outside the image, or marked as “invalid”.

Validity mask after matching cost step

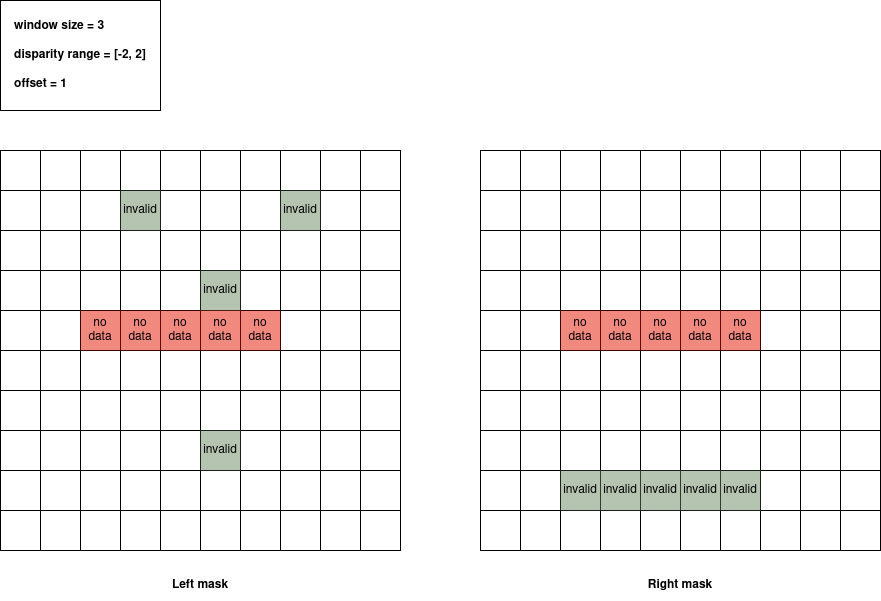

As a reminder, here are the left and right masks used in our example :

../_images/left_right_mask.drawio.png

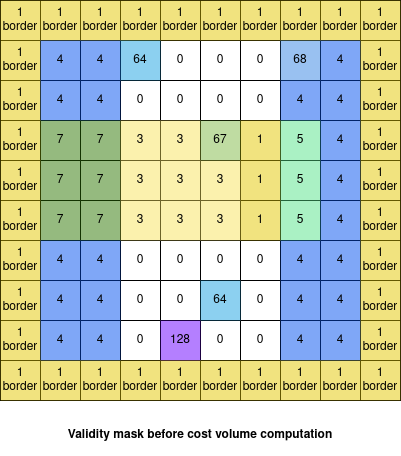

Before the cost volume computation, validity mask is filled with contributions from left and right masks added together. For the example with window_size=3, disparity_range=[-2, 2], offset=1 and the previous left and right mask we obtain the following validity mask:

../_images/validity_mask_before_cv.drawio.png

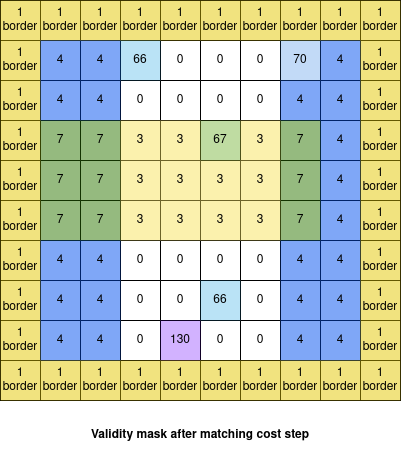

As explained before, the validity_mask is also updated after the cost volume computation : we add criteria 1 for points which are NaN in the cost volume for all disparities and which are not on the border. Then, at the end of the matching cost step we obtain the following validity mask:

../_images/validity_mask_matching_cost.drawio.png

Criteria raised in refinement step

Criteria 3: stopped interpolation

Note

Criteria 3 is an information and does not invalidate a point.

Criteria 3 is raised when the subpixel interpolation does not succeed for a point.

Validity mask after refinement step

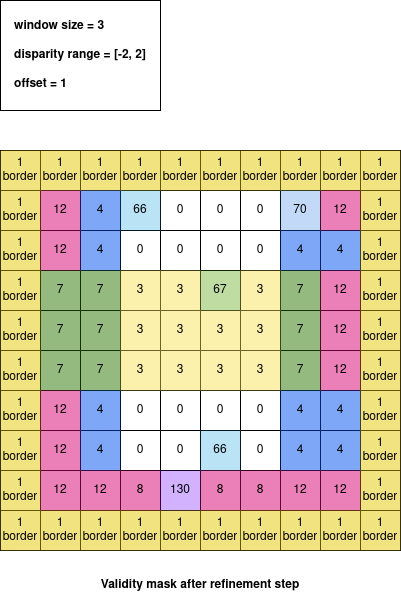

In our previous example, after a refinement step with a quadratic method we obtain the following validity mask:

../_images/validity_mask_refinement.drawio.png

Criteria raised in filter step

Criteria 11: pixel interval regularized

Note

Criteria 11 is an information and does not invalidate a point.

Criteria 11 can be raised when the median for intervals method is used as a filtering step.

It is set in the validity mask when the corresponding point has been regularized in the disparity map.

Criteria raised in validation step

Criteria 4: filled occlusion

Note

Criteria 4 is an information and does not invalidate a point.

Criteria 4 is raised when an occlusion point has been filled by one of the method described in Validation of the disparity map.

Criteria 5: filled mismatch

Note

Criteria 5 is an information and does not invalidate a point.

Criteria 5 is raised when a mismatch point has been filled by one of the method described in Validation of the disparity map.

Criteria 8: pixel occlusion

Criteria 8 is raised when a point is considered as an occlusion (see Validation of the disparity map).

Criteria 9: pixel mismatch

Criteria 9 is raised when a point is considered as a mismatch (see Validation of the disparity map).

Validity mask after validation step

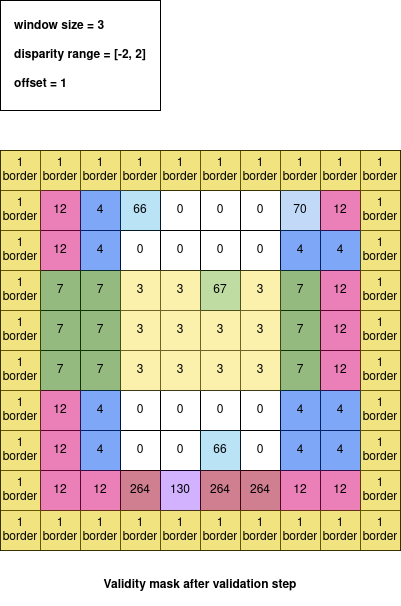

In our previous example, after a validation step with a cross checking accurate method we obtain the following validity mask:

../_images/validity_mask_validation.drawio.png

In our case, only occlusion points have been detected.

Below we can find all the criteria raised after a validation step in our example:

../_images/criteria_after_validation.drawio.png

Criteria raised when we use multiscale processing

Criteria 10: filled no data

Note

Criteria 10 is an information and does not invalidate a point.

Criteria 10 is used in the case of a multiscale processing. In this case, we interpolate the no data pixels in the input image. For these pixels, criteria 10 is raised.
